Viscount Legend Classic




Viscount TONE WHEEL ORGAN MODELING TECHNOLOGY

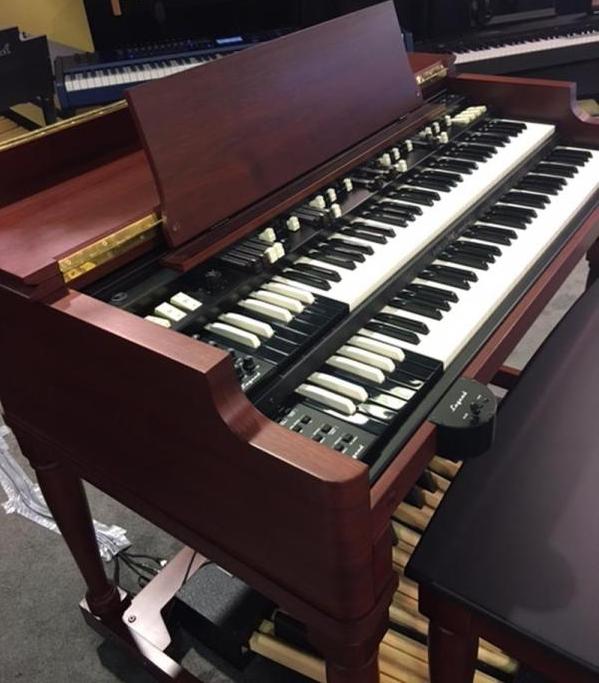

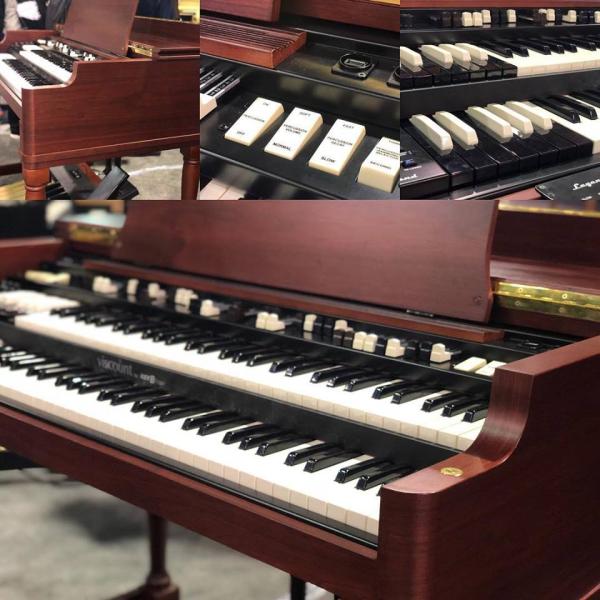

Viscount Legend Classic er et realistisk tilbud for at komme helt tæt på følelsen af det legendariske Hammond orgel
Med et smukt kabinet kan du svømme 50 år tilbage i tiden og hensætte dig til ægte nostalgi.


Pris: DKr 81.850,-


Priser for Viscount Legend med to manualer starter ved kun DKR. 17.850,-







Nedenfor kan du opleve video med Viscount Legend




KEYBOARD
Keyboard Upper Keyboard - 73 notes (61 + 12 reversed preset keys) waterfall keyboard Lower Keyboard - 73 notes (61 + 12 reversed preset keys) waterfall keyboard
SOUND_GENERATOR
Technology TMT (Tonewheel Modeling Technology)
Crosstalk Unique crosstalk created for each tonewheel model
Keyclick A new revolutionary state of the art design
Transposer -6 +5 semitones
Fine Tuning +/- ¼ tone
Tonewheel model '30, '50, '70
String Bass On/Off, Decay Control
Harmonic Percussion On/Off, Volume Soft/Normal, Decay, Fast/Slow, Harmonic Percurssion 2nd / 3rd Percussion Level and Percussion Decay Controls
EFFECTS
Reverb Effects Newly modeled Spring and Hall reverbs (with pre/post Rotary simulation placement of reverb)
Overdrive Classic, Rock
Modulation Effects Vibrato/Chorus: Upper On/Off, Lower & Pedal On/Off, Select: V-1, V-2, V-3, C-1, C-2, C-3
Rotary simulation type Classic, Rock with Direct option
INTERFACE
Controls Upper Front Panel: Volume; Reverb; Drive; Keyclick; Tuning; Crosstalk; Tone Controls; Pedals Sustain; Percussion decay; Percussion Volume. Lower Front Panel: Reverb; Drive; Tonewheel Model; Transpose; Rotary; Hold (Int/Ext); Pedals direct; pedals to Lower. Half Moon: Rotary Speed Control.
Drawbars - Upper 2 sets of nine drawbars: 16' - 5 1/3' - 8' - 4' - 2 2/3' - 2' - 1 3/5' - 1 1/3' - 1'
Drawbars - Lower 2 sets of nine drawbars: 16' - 5 1/3' - 8' - 4' - 2 2/3' - 2' - 1 3/5' - 1 1/3' - 1'
Drawbars - Upper Preset Upper Drawbar Set A or Set B + 9 presets and Upper MIDI Local on/off [reverse colored Preset keys]
Drawbars - Lower Preset Lower Drawbar Set A or Set B + 9 presets and Lower MIDI Local on/off [reverse colored Preset keys]
Drawbars - Pedals 2 drawbars: 16' & 8'
Connections CABINET CONNECTION LOCATION > = outside < = inside <&> = inside and outside OUTPUT: <&> L & R Line Out 6,35 mm jacks, balanced > Pedals Direct Out 6,35 mm jack, balanced (without C/V and Rotary emulation) <&> 11' pin Rotary Speaker (doubled outside) > 2 Stereo Headphone 6,35 mm jacks < TRS Digital Expression Pedal 6,35 mm jack < Rotary Simulation Footswitch, 6,35 mm jack <&> USB HOST type A, power charger only < FX send INPUT: < Audio input mono with adjusting gain pot < FX return <&> USB TO HOST type B, for firmware update
Midi In, Out, Thru < Out 1, Out 2, In, Thru, Pedalboard In
OTHER
Dimensions (WxHxD) 126,6 x 61,5 x 77,7 cm / 49.8' x 14.1' x 30.6'
Weight 57 Kg/125,6 lbs (console); 15 Kg / 33 lbs (stand)
