Viscount Domus 4
ALLE DOMUS ORGLER KAN BENYTTES SOM SPILLEBORD FOR HAUPTWERK VIRTUELLE ORGLER !

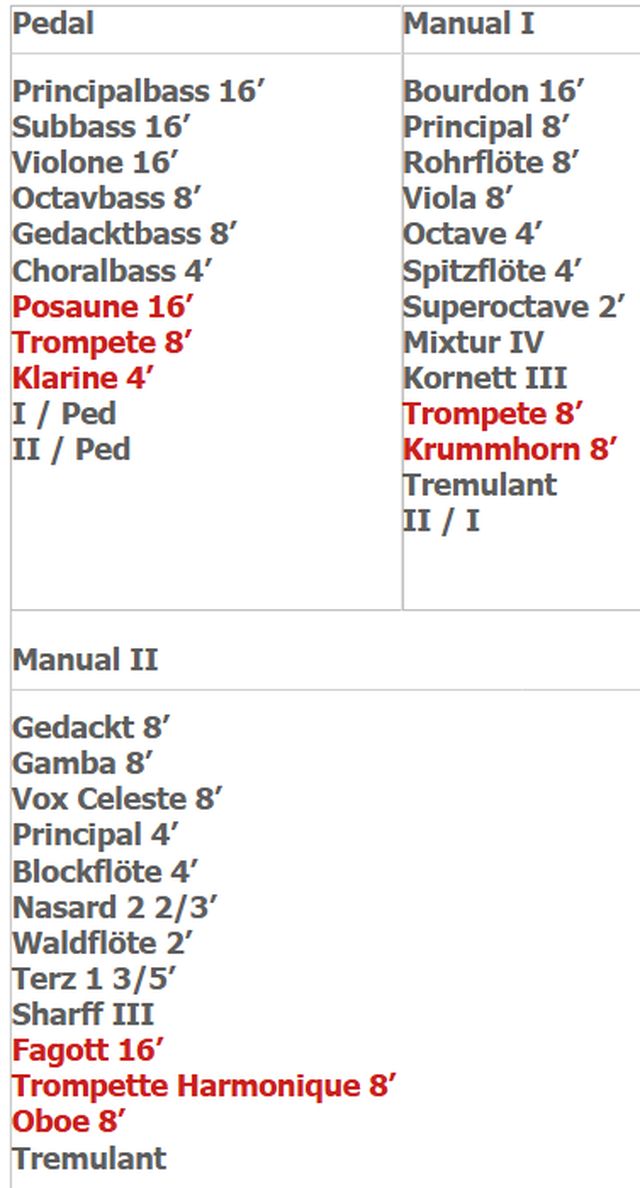

Domus 4 er et orgel på 2 manualer med 32 klingende klassiske registre i 3 forskelige stilarter:
3 orkester instrumenter
2 manualer og et 30-toners pedalspil
Pris: fra DKr 39.850,-
Version med rullelåg
Pris: fra DKr 49.850,-
Nedenfor kan du lytte til Dumus 4
Plenum
Fløjtestemmer
Krumhorn solostemme
SPECIFICATIONS | |
OVERVIEW | |
Technology | Advanced Physical Modelling |
Manuals | 2 |
Total Stop Controls | 32 Organ + 3 Orchestral |
Pedal | 9 |
MAN I | 11 |
MAN II | 12 |
Alternative Organ Voices | 5 or more on each tab |
Alternative Orchestral Voices | 30 or more on each orchestral tab |
Couplers | 3 |
General Memories | 1000 (000 - 999) |
Memory Slots | 3 slots x 1000 each |
Total Memories | 3000 |
Piston Sequencer | Two thumb pistons |
DIMENSIONS | |
Height (excluding music desk) | cm 119,1 - 46,9” |
Height (including music desk) | cm 136,5 - 53,8” |
Width | cm 126 - 49,6” |
Depth (excluding pedal board) | cm 62,5 - 24,6” |
Depth (including pedal board) | cm 113,4 - 44,6” |
Weight | Kg 115 - Lbs 253 |
CABINET | |
Laminated Wood | Dark oak, Light oak |
ACCESSORIES | |
Bench | Included |
Adjustable Bench | Optional |
Orchestra and Midi Sustain | Side Switch on Expression Pedal |
DISPLAY | |
Display Dimensions | 128 x 64 dots Graphic with Backlight |
Stops Voicing | Available |
Divisional Volume | Available |
Tremulant | 2 independent for each division |
Reverb | 8 presets |
Ensemble Effect | Adjustable |
Temperaments | 19 Historical + 4 user programmable |
Short Octave | Available |
Keyboards Inversion | Available |
Internal Routing | Programmable for each stop |
Internal Equalizer | 5 Band Graphic EQ |
MIDI Sequencer | Available |
File Manager | Load, Save, Backup, Restore |
Lock Organ | With Password |
MUSIC DESK | |
Wooden Desk | Included |
Adjustable Desk | Optional |
MANUALS - KEYBOARDS | |
Standard Keyboards | Available |
Plastic Black Keyboard Covered with Real Wood | Optional |
Ivory / Wood Colored Plastic With Wooden Core | Optional |
Viscount AWK Keyboards With Wooden Core | Optional |
PEDALBOARD | |
30 note Straight Concave or Flat, Radiating Concave | Available |
CONNECTIONS | |
MIDI In - MIDI Out | Available |
Aux In, Aux Out | Available |
Headphones Out | Available |
USB | A-Type (USB pen) B-Type (Connection to Physis Editor) |
EXTERNAL OUTPUTS | |
Channels | 4 programmable (optional: up to 12) |
Channel Assign | Voice, General, Sub, Reverb |
Equalizer | 5 Band Graphic EQ for each channel, EQ for Sub |
Routing | Programmable for each stop |
Volume | Adjustable for each channel |
REVERB SYSTEM | |
True Stereo Reverb | 8 new unique presets |
Additional Parameters: | Wet/Dry, Early reflection, Decay time |
Left/Right | Assignable to external outputs |
SOUND AMPLIFICATION | |
Internal Amplifiers | 6 Class-D amplifier 150W per channel |
Internal Speakers | 10 total | 4 tweeter | 4 mid-range | 2 x 8” woofer |
Channel Assignable | Reverb LR | General | Sub |
PIPE SETS | |
Baroque, Romantic, Symphonic + 3 assignable sets | |
DISPLAY MENU FUNCTIONS | |
Temperaments | Available |
Pipe Set | Available |
Pitch | Available |
Crescendo Steps | Available |
2x Expression Pedals Level | Available |
Transposer | Available |
Quick Access | Levels (Master, Reverb, Ext Out, ...); Songs |
